VW Passat B8 Tiguan Instrument Cluster Speaker (4 Ohm) – Virtual Cockpit Buzzer Repair

Instrument cluster internal speaker (buzzer) for Volkswagen Passat B8 with Active Info Display / Virtual Cockpit.

Fix ACC, indicator & warning sound issues on VW Passat B8. Replace the internal 4 ohm cluster speaker instead of the full instrument unit.

Shipping within EU via Deutsche Post / DHL Global Mail.

Common customer complaints:

• ACC not working
• No indicator clicking sound
• No parking sensor acoustic signal
• No warning chimes from instrument cluster
• Completely dead cluster speaker

The official dealer solution is replacement of the complete instrument cluster (KOMBI), including CP removal, coding, mileage, etc. Replacing only the internal speaker is cost-effective.

Typical stored fault code (Address 17 – Instruments):

10485828 - Internal Control Module Memory Check Sum Error
B2000 41 [00001001] - General Checksum Failure
[Steuergerät defekt (Fehler durch Selbsttest entdeckt)]
Confirmed - Tested Since Memory Clear

13639936 - Databus
U1123 00 [00001000] - Received Error Message
[Steuergerät für BCM / Bordnetz / el. ZE: bitte Fehlerspeicher auslesen]
Intermittent - Confirmed - Tested Since Memory Clear

Installation

1. Remove instrument cluster
2. Disconnect 12V battery before removal
   (Prevents ABS coding issues)
3. Replace internal speaker
4. Reinstall cluster

Compatible with:

• Volkswagen Passat B8
• Volkswagen Tiguan

Scope of delivery:

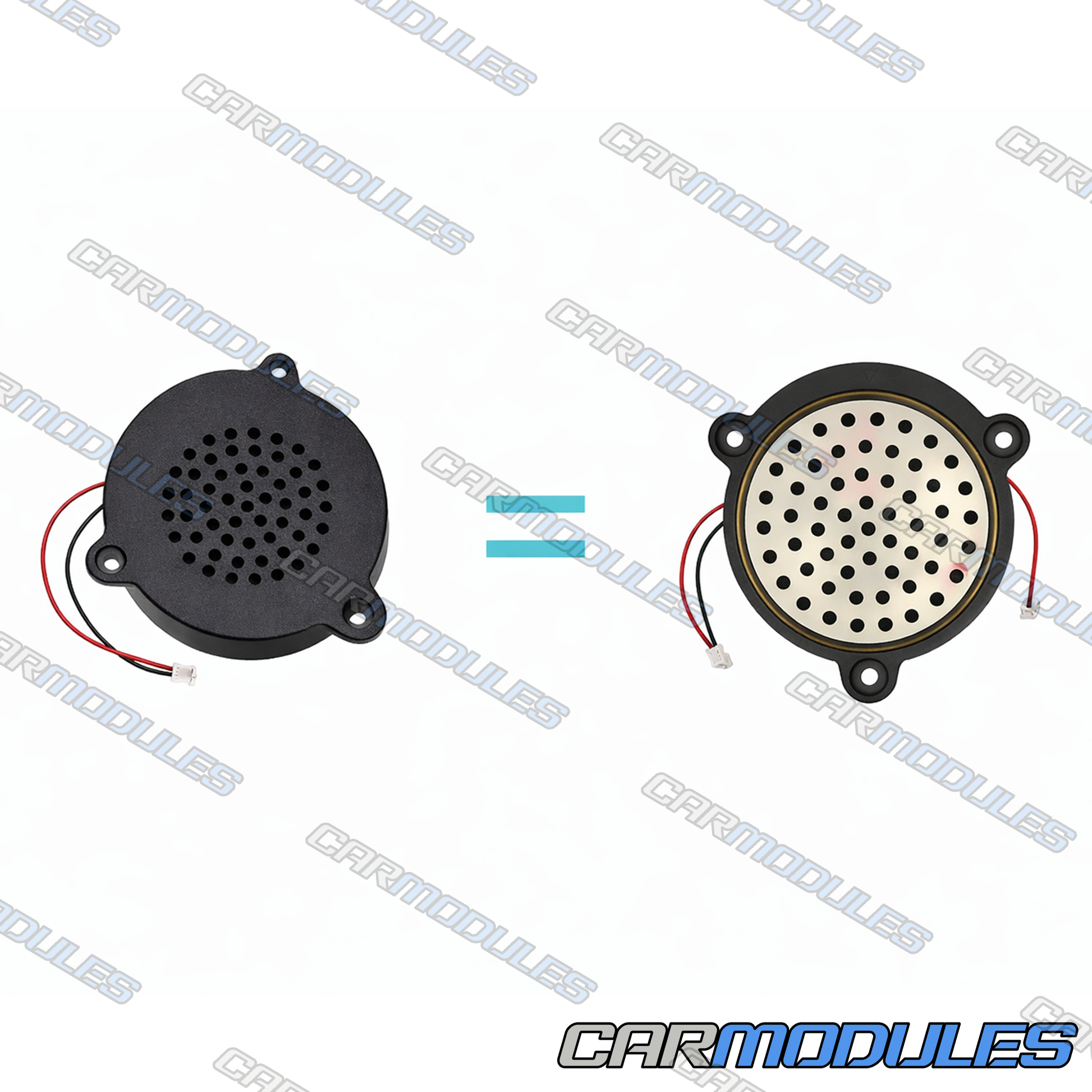

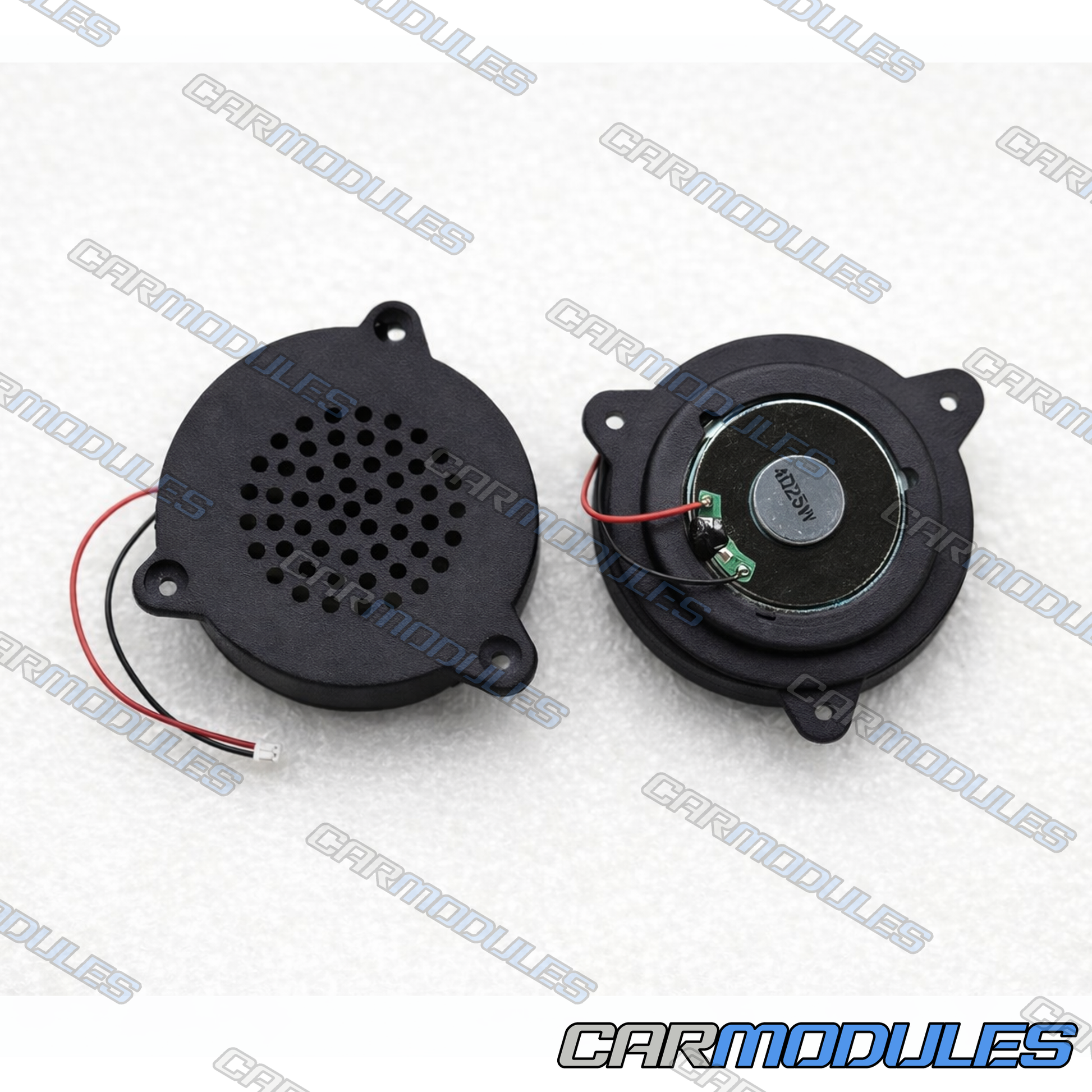

1x  4 ohm Instrument Cluster Speaker (Buzzer) for VW Passat B8 and VW Tiguan

For assistance, feel free to contact us: carmoduleseu@gmail.com

We can also assist remotely with diagnostics and coding using ODIS-E and ODIS-S.
